Flexible PCB Manufacturing
✓ Wide Range FPC Production ✓ NO MOQ Required ✓ IN-house Testing
✓ DFM Support ✓ 24/48H EXPRESS service

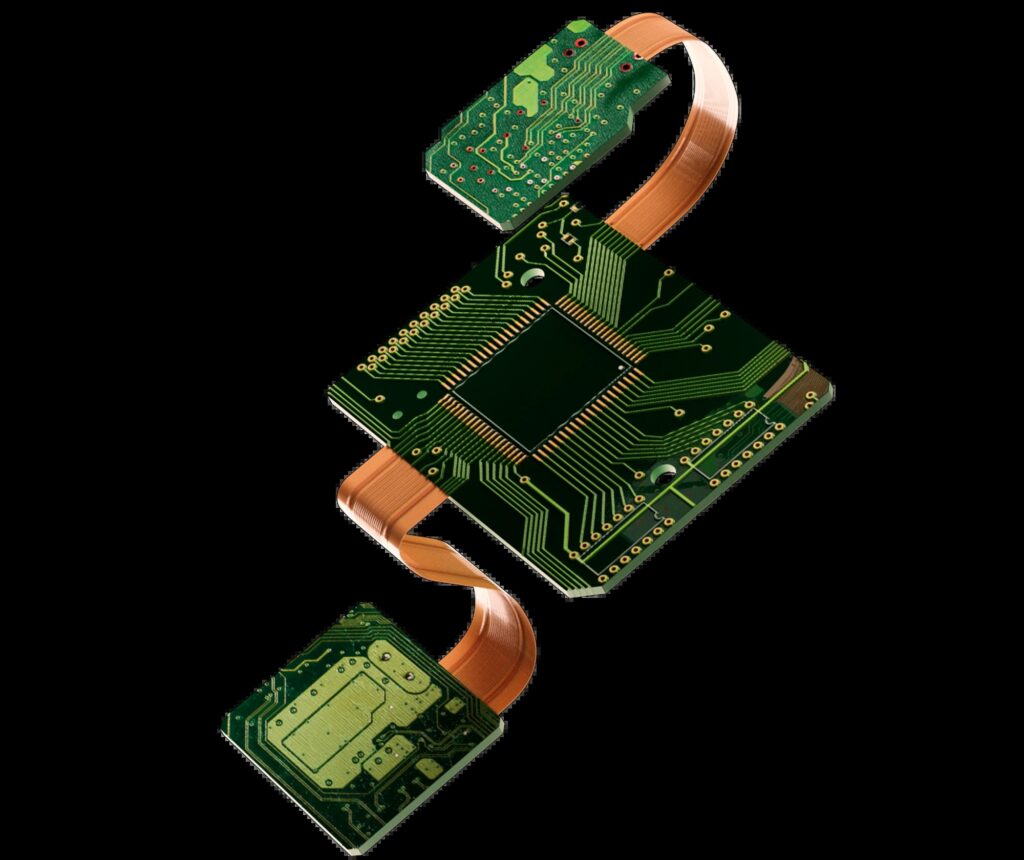

What is a Flexible Printed Circuit Board (FPCB)
Also known as a flex circuit, it is a type of electronic interconnect that uses a mallable plastic substrate-typically polyimide(PI) or polyester(PET) instead of the rigid fiberglass(FR4) used in traditional PCBs. This allows the circuit to bend, fold, and twist into complex three-dimensional shapes or move dynamically during operation.
FPCB Production Features
Full-Spectrum Production Flexibility with Zero MOQ
Offers versatile manufacturing of various FPC types (single-layer to rigid-flex) from prototyping to mass production, supporting orders as small as 1 piece with no MOQ limits.
Versatile Industry Applications
Provides reliable FPCs for diverse sectors like wearables, smartphones, medical devices, automotive systems, and industrial sensors to meet industry-specific needs.
Strict Manufacturing Parameter Control
Ensures strict control over layers (1-6), sizes (up to 250×600mm), hole diameters (0.15-0.2mm), line widths/spacing, and other critical production parameters.
Comprehensive Surface Treatment Solutions
Delivers multiple surface finishes (Ni-Au, Sn, OSP) with defined thickness ranges for nickel, gold, and tin layers to suit different application requirements.
Integrated Ancillary Service Package
Supplies end-to-end assembly support, customization options (outlines, panelization), and enhancements like stiffeners and EMI solutions.
Flexible Delivery Time and After-sales Guarantee
Offers flexible lead times (3-12 working days) with expedited options, plus 100% after-sales support and pre-production samples for quality verification.
FPCB Manufacturing Capability
From rapid prototypes to production-ready FPCB ( Flexible Printed Circuits), Helptron Electronics provides end-to-end FPC manufacturing with speed, precision, and full material flexibility. Our FPCs power products across wearables, medical devices, consumer tech, industrial sensors, and more.
| Items | Standard | Limitation | |
| Layers | 1-4L | 6L | |
| Max Size | 250*300 | 250*600 | |
| Min Hole Size | 0.2 | 0.15 | |
| Hole Position Tolerance | +- 0.05mm | +- 0.03mm | |
| Hole Wall CU Thickness | 8um To 12um | 15um To 20um | |
| Line Width / Space | 1/3oz: 2.4mil/2.4mil 1/2oz: 3.0mil/3.0mil 1/1oz: 4.0mil/4.0mil 2oz: 6mil/6mil | 2mil/mil 2.4mil/2.4mil 3mil/3mil 4mil/4mil | |
| Trace-to-Board-Edge Distance | 0.2mm | 0.15mm | |
| Coverlay Registration Tolerance | 0.2mm | 0.15mm | |
| Coverlay Openning-to-Trace Spacing | 0.1mm | 0.05mm | |
| Adhesive Squeeze-Out | 0.15mm | 0.05mm | |
| Stiffener Registration Tolerance | +- 0.25mm | +- 0.15mm | |
| Legend | Min Width: 0.15mm Min Height: 1.0mm Shift Tolerance:+-0.3mm | 0.12mm 0.8mm +-0.2mm | |
| Surface Treatment | Deposition Ni-Au Electroplate Ni-AU Electroplate Sn OSP | Ni80-200uinch/Au1-3uinch Ni80-240uinch/Au1-3uinch 100-1000uinch 0.2-0.5um | Ni80-100uinch/Au 4uinch Ni80-120uinch/Au1-50uinch 100-150uinch 0.5-1.0um |
| Steel Rule Die Tolerance | +-0.3mm | +-0.2mm | |
| Hard Tooling Tolerance | +-0.1mm | +-0.05mm | |
| Gold Finger Shift Tolerance | +-0.1 | +-0.05 |
Consult With Special Specs If The Table Above Can Not Meet Your Requirements.
FPCB Manufacturing Helping Center
What is your standard lead time for FPC orders?
What types of FPCs do you manufacture?
What are the advantages of using flexible printed circuit boards?
What materials are used in flexible printed circuit boards?
Do you support SMT assembly on flexible PCBs?
Can I request a sample before committing to a bulk order?
What happens if there’s a defect or delivery issue?
How do you prevent damage to FPCs during transportation?
What is the minimum order quantity (MOQ) for FPC production?
We support low-volume orders starting from 1 piece, perfect for prototyping or pilot runs, with scalable options for mass production.
Can you manufacture flexible circuits with impedance control?
Yes, we provide impedance-controlled FPCs using precise dielectric thickness and copper width control, suitable for high-speed or RF applications.
What surface finishes do you offer for FPCs?
Prices are based on layer count, size, copper thickness, surface finish, complexity, and order quantity. Submit your files for a fast and accurate quote.
Can you provide panelized FPCs or customized shapes?
Yes. We offer custom FPC outlines, panelization with break-off tabs, and precision laser cutting for unique applications.
What if I need stiffeners, shielding films, or EMI solutions?
We support a wide range of options, including PI stiffeners, FR4 stiffeners, EMI films, aluminum foil, or copper shield layers, tailored to your application.
I have tight deadlines — can you offer fast-turn or expedited service?
Yes. We offer expedited prototype services with lead times as fast as 3–5 working days depending on the design and quantity.
Can you help reduce costs for high-volume or long-term projects?
Yes. We offer volume discounts, long-term pricing agreements, and can recommend cost-saving design adjustments without sacrificing performance.
